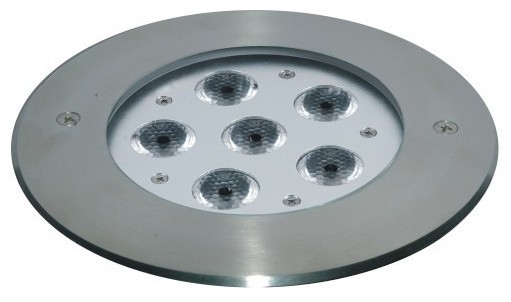

6x3W LED Underwater Light
Features:
1.This high-power LED fitting which housing is all stainless, must be installed underwater.
2.Excellent designe of heat-conducting housing ensure longer life time of LED.
3.RGB controller. 24C or 24 D is recommended to apply with this product.
Specifications:
Housing: 304' stainless stain housing
Glass : Stop tempered glass T=8mm
Loading capacity: Exert force area of Φ10=650㎏s Φ30=1530㎏s
Lens: Seperate optical lens efficiency≧85％
Waterproof cable gland: IP-68 PG-11 copper and nickle coated
Waterproof seal: Molding shaped sillicon double seal
LED: TO type power leds
PCB: Excellent heat conductivity aluminum, efficient of heat conductivity ≥ 2.0W/mk
Driver: Constant conrrent output
Single color LED = 1-circuit output
RGB LED =3-circuit output
RGB 3 in 1 LED=3-cirvuit output
Application enviroment: In normal temperature water ,water deepth within 1m
Power cable: H05RN-F4× 0.75M㎡ L=3M
Item No. |
Light Source |
Suitable Lens |
LED Beam |
Consumption(W) |
Input |
Operating Current(mA) |
RUW023 |
6×1W |
L0130D027MS |
30 |
7.0 |
DC24V |
294 |
RUW024 |
6×3W |
L0130D027MS |
15.1 |
629 |
||
RUW025 |
6×3W |
L0130D027MS |
19.5 |
812 |
||
RUW026 |
6×1W |
L01 C026ST |
—— |
8.6 |
357 |
|
RUW027 |
6×3W |
L01 C026ST |
15.1 |
706 |
||
RUW028 |
6×3W |
L01 C026ST |
23.1 |
964 |
Remarks:
(1) LED driver is coustomized when the circumstance of working temperature is below 0℃
(2) Use only swithing supply or colled transformer 24VDC power input
(3) Customized 361'stainless steel is available
The power consumpion is based on the test of 24VDC input , refering to the power consumption of whole fitting. Different input voltage with different power consumption. Please refer to the specification on our website.
