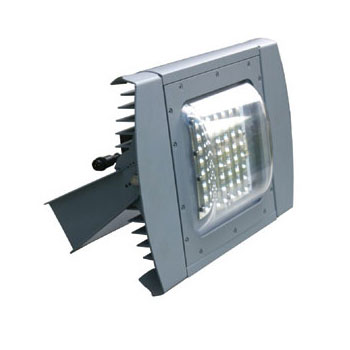

LED Street Light » H2FSR009AB

HanChang LED street light using high thermal conductivity aluminum radiator, good thermal conductivity to ensure the long service life of lamps. These led lamps use international brand LED, which are energy saving, green environmental, simple structure, easy for installation and maintenance. Besides, they are modular desigyed. Specification changes in flexibility in the use of nano-materials. The whole lamp features high light efficiency and good anti-glare effect. The pairs of gas-tight chamber patented technology and high degree of protection ensure the service life of product.


1. Input voltage: AC170~250V, 50~60Hz
2. Power factor: >0.95
3. Total harmonic distortion: <15%
4. Power efficiency: >89%
5. System power: 135W
6. Initial luminous flux lamps: >9450 Lm / >6750Lm
7. Light efficiency lamps: >90%
8. Color temperature: 5000~6350K / 2700~3500K
9. Color rendering index: >70 / >75
10. Light distribution curve/spot: Bat air foil/rectangular spot
11. Junction temperature: <75 °C
12. Working temperature: -40~50 °C
13. Relative humidity: 10%~90%
14. Protection level: IP67
15. Lifetime: >50000 Hours
16. Material: Aluminum alloy
18. Professional custom power supply, high efficiency and high reliable
19. New shape and beautiful
20. Main applications: Main road, sub-trunk, branch road, industrial area, rural roads etc.
